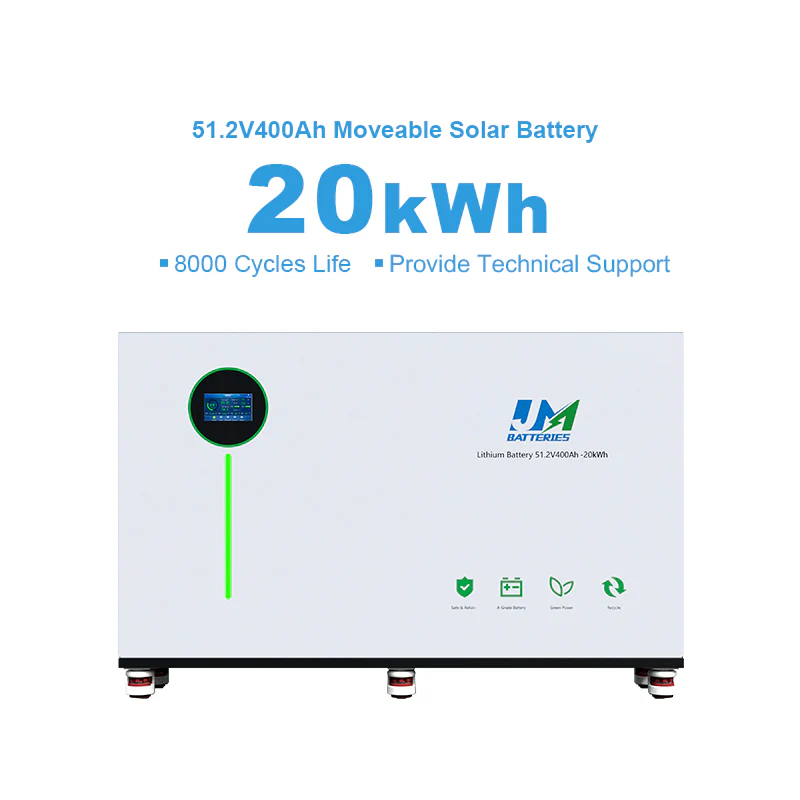

JM 20kwh Battery Storage High Performance Home Battery
Product Summary:
-
Portability & Installation:
- Ultimate portability and flexibility
- Simple, convenient setup for hassle-free use
-
Design & Expandability:
- Attractive appearance
- Supports parallel connection (max. 15 units)
-
Performance & Eco-friendliness:
- LiFePO4 battery pack (20.48kWh energy)
- Pollution-free; cycle life exceeding 8000 times (long lifespan)
-
Safety & Intelligence:
- JBD-200A-16S intelligent BMS (prevents overcharging, overdischarging, overheating)
- LCD + built-in WiFi for real-time monitoring
- Customizable display (touch/push-button) & Bluetooth/WiFi
-
Compatibility:
- Works with most well-known inverters (e.g., DEYE, Growatt, PYLONTECH)
-
Specs & Warranty:
- Max charge/discharge current: 200A (each)
- Operating/storage temp: -20ºC~60ºC
- Dimensions: L1130W424H200mm; Weight: 100kg
- 10-year warranty
-
Customization:
- Customizable capacity, specs, and OEM/ODM services
- Customizable communication modes (CAN/RS485/R232)
20kwh Battery Backup Product Parameters:
|
Model
|
JM-51.2V400Ah-LED
|
|
Nominal Voltage
|
51.2V
|
|
Rated Capacity
|
400Ah
|
|
Battery Energy
|
20.48kWh
|
|
Operating Voltage Range
|
48V~58.4V
|
|
BMS
|
JBD-200A-16S
|
|
Support Inverter Brands
|
DEYE, Growatt, PYLONTECH, SMA, MUST, VICTRON,GOODWE, Also Support Customized Other Inverter Brands |
|
Battery Type
|
LiFePO4 Battery Pack
|
|
Maximum Charging Current
|
200A
|
|
Maximum Discharge Currentt
|
200A
|
|
Product Size
|
L1130*W200*H742 mm
|
|
Weight
|
162kg
|
|
Battery Cycle Life
|
≥8000 Cycles
|
|
Storage / Working Temperature
|
-20 ºC~60 ºC
|
|
Warranty
|
10 Years
|
|
Parallel Connection Quantity
|
15 Units MAX
|
|
Communication Mode
|
CAN / RS485 / RS232
|
|
Display
|
Touch Display / Push-Button Display
|
|
Bluetooth / WiFi
|
Support Customized
|
20kwh Battery Storage Detailed Photos:



JM Company Profile:




Frequently Asked Questions (FAQ):
How long will a 20kWh battery last?
A 20kWh home battery can typically power an average household for 12 to 24 hours during a power outage. If you manage your energy consumption and only run essential appliances (like a refrigerator, lights, and Wi-Fi router), it can easily last for a couple of days. When paired with a solar panel system, your JM 20kWh battery can recharge during the day, potentially keeping your home powered indefinitely off-grid.
How much does a 20kWh home battery cost?
The cost of a 20kWh home battery storage system typically ranges from $8,000 to $15,000, depending on the installation complexity, inverter compatibility, and location. Investing in the JM 20kWh High-Performance Battery offers exceptional long-term value thanks to its premium LiFePO4 chemistry, which requires zero maintenance. Additionally, you may be eligible for local solar tax credits or rebates that significantly lower the upfront cost.
Is 20kWh enough to run a house?
Yes, 20kWh is more than enough to run a standard home overnight and through peak-rate hours. The average household consumes about 28 to 30 kWh of electricity per day. By fully charging your 20kWh battery via solar panels during the day, you can comfortably cover your evening and nighttime energy needs, effectively reducing your reliance on the utility grid and cutting down your electric bills.
How many batteries do I need for a 20kW solar system?
A robust 20kW solar system can generate roughly 80 to 100 kWh of electricity per day under good sunlight. To maximize your energy independence and store all that excess solar energy, you would ideally need two to four 20kWh batteries (totaling 40kWh to 80kWh of storage). However, starting with a single JM 20kWh battery is an excellent foundation for load shifting and essential backup power.
What can a 20kWh battery power?
A 20kWh battery can power a wide range of household electronics and heavy-duty appliances. On a full charge, it can simultaneously run your daily essentials—such as a refrigerator, lighting, laptops, and a television—while also having enough capacity to handle intermittent high-draw appliances like a washing machine, microwave, well pump, or a central air conditioning unit (depending on your inverter's output rating).
What is the lifespan of the JM 20kWh LiFePO4 home battery?
The JM 20kWh battery utilizes advanced Lithium Iron Phosphate (LiFePO4) technology, which is globally recognized for its exceptional durability and safety. You can expect a lifespan of over 8,000 deep charge cycles—translating to roughly 10 to 15 years of daily use—before the battery capacity gradually reduces to 80% of its original rating.
Is the JM 20kWh Battery compatible with my existing solar panels?
Absolutely! The JM 20kWh High-Performance Home Battery is designed for universal compatibility. It seamlessly integrates with most tier-1 hybrid inverters and existing residential solar setups. This makes it an ideal, hassle-free upgrade for homeowners looking to retrofit their current solar arrays with reliable energy storage.
How safe is the JM 20kWh Battery Storage for indoor installation?
Safety is our top priority. The JM 20kWh battery features a state-of-the-art, built-in Battery Management System (BMS) that automatically protects the unit from overcharging, deep depletion, overheating, and short circuits. Combined with stable LiFePO4 chemistry and a rugged casing, it is completely safe for installation in garages, basements, or utility rooms without the risk of thermal runaway.
Can I expand my JM battery storage beyond 20kWh in the future?
Yes, the JM battery system is fully modular and scalable. If your energy demands increase over time—for instance, if you purchase an Electric Vehicle (EV) or build a home addition—you can easily connect multiple JM batteries in parallel. This allows you to expand your total storage capacity to 40kWh, 60kWh, or even more, customized to your home's unique energy footprint.
Can the 20kWh battery protect my home from rolling blackouts?
Yes. When paired with a compatible hybrid inverter, the JM 20kWh battery acts as an Uninterruptible Power Supply (UPS). In the event of a grid failure or rolling blackout, the system automatically switches to battery power within milliseconds. Your lights will stay on, your food will stay cold, and your home will remain powered without you even noticing the grid went down.
